What have you done to your 5th Gen 4Runner today?

I did my break in oil change on my 2023 today at 1100 miles. Feeling relieved.

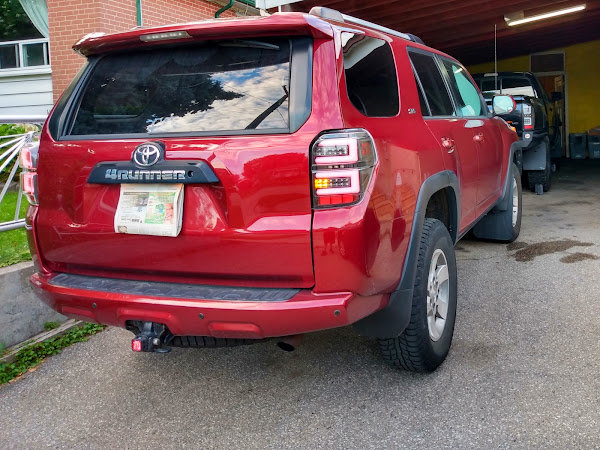

Installed Spyder P/N 111-T4R10-SEQ-BK full-LED tail lights in the 4Runner for uh, fleet commonality: https://www.ebay.com/itm/133601006608

The driving lights, brake lights, and sequential turn signals illuminate separately, not relying on changing intensity like the stock lights:



Deleted the OEM crossbars. Tomorrow I'll install the 4x4 Innovations mounts for the Rola basket.



Well... the skid plates are in. Had some issues with the instructions as well as some alignment of the holes. Ended up having to widen, just a bit, two of the bolt slots in the front skid plate to be able to get all the bolts in. Was also not totally comfortable with the stress added to the brake line group when putting on the cross member for the transfer case skid. Watched their install video and noticed the same thing there so I assume it's normal.

Between not receiving the hardware pack for the sliders and the issues I had with the skids, I think this will be my last RCI purchase.



I'm guessing it's still shitty nav, just updated shitty nav?



I installed RCI sliders on my buddies 2nd gen taco. 2 or 3 months later all the paint was worn off on a couple spots towards the rear where bits of debree kicks up. And it was rusted. This was summer. No rain or anything. Terrible paint and paint prep.

I will say that I bought them as 3rd gen sliders but when I gave them to my buddy I called RCI and explained I wanted to buy 2nd gen hardware. They mailed it for free. Very cool of them buuuut I'll be staying away from RCI same as you.



Ya, we'll see how everything holds up. With as little off-roading as I'll do, I'm not too worried about paint wearing off. Skid plates are raw aluminum so nothing to wear off there... except metal.

I'll be looking into a bumper filler piece? I hate seeing that radiator sitting out in the open. Of course RCI has one.



I was planning on getting the full skid set. Haven't really liked the feedback from tundra and 4runner owners recently. Looks super clean tho after install



those look sick. I'd prefer swapping head and tail lights with morimoto but have heard mixed results with headlights.
maybe I'll just change the tail lights How hard was the tow light install.



I'm honestly super impressed with the tails. Many of the aftermarket options in my opinion are meh, but these tails look factory.

The hitch light is easy, unplug tow harness, install new harness, slide light into hitch. Done.



I have the filler piece. Got it about a year ago and yeah it’s been starting to rust in certain spots. I live in Cali too. I reached out to RCI and their response was it’s normal and to try sanding and repainting it..lol. Glad I didn’t get sliders from them.



Did you access it from the backside?



I haven't had any issues using it since I bought the 4Runner. No more than a Garmin I bought couple years ago when I use rental car for work. I know ANY Nav system can lead you astray for a fact!



I'm not the person you quoted, but when I did mine I was able to access it from the back. There where a couple of clips that were hard to get at but with persistence is doable.



I'm sad to see so many comments about RCI. I have their sliders and full aluminum skids, including cat guards and gas tank skid. I have a front filler from my victory bumper.

I have one rust spot on the slider top plate where the letters were cut out and its sharp so not surprised the PC didn't stick well. Other than they they've held up well - although I need to crawl under and take a good look.

I rattle canned my raw aluminum skids before install and they all fit without any issues



Now that I've slept on it, it really wasn't that bad. I did the install by myself so that may have added to the frustration. The skids seem to be good quality. I do think the install instructions need to be updated. It's not rocket science but I expect a company that sells a product for customers to install to have good instructions. My guess is that the instructions have been the same for a number of years and small changes in models have been made.

With the Labor Day sale, prices were very good.

Now the hole being slightly off was a pain. But it was only one hole out of the bunch.



there’s a bit of flex on the front crossmember where the skid plate bolts. the truck developed a squeak when i would turn. i didn’t think much of it until i drove the 4R with the skid plate off to repaint it and the squeak was stopped.

it’s possible the frame was slightly flexed in a way to cause the misalignment.



This seemed like a reasonably priced update for the navigation unit...however, every one of those I looked at, no matter the price, on Amazon said compatible for the 4Runner through 2018. I don't imagine it really makes a difference, but mine is a 2019. You would think one of those sellers would have updated their listing if compatible with 2019. One actually said through 2020, which we all know is incorrect, but when I drilled down on the details, it too said 2018.

Edit: found one seller who stated compatible with 2019, so I ordered that one. I'm sure it's probably the same thing everyone else is selling, though...



Definitely a possibility. Could also be I missed something when trying to wiggle it around to get it to fit. It started with the two center "tube bolts". Since those were harder to modify without completely removing the skid, I took the front two bolts off and got the center ones in. So now one of the front ones was off. It was *barely* off. Just enough so that I didn't feel comfortable trying to screw the bolt in without risk of stripping it. If I moved that hole to center, the other bolt hole was now off.

I could swing the plate down and get a dremel in there to widen the hole just enough to get the bolt to go in straight.

Pic of tube bolt hole. Front one looked like this once I got the center ones in.



Thanks I have been up under there looking to see what my options are



Seems like I remember when installing my RCI skid dealing with the same - one hole was always off slightly. I didn't end up modifying any holes in the skid, though, I just got all 6 of the bolts started with just a few threads. When I was convinced they all were in right and wouldn't strip, I proceeded to snug them all up, then torque them. Then to make things even more difficult for myself, I managed to wrangle the stock plastic bumper filler piece in between the front of the skid and the bumper...



maybe it’s the aluminum variants. my rci lined up pretty well though it is the steel variant.

i haven’t had any squeaks since i reinstalled with some anti seize between the mating surfaces of the skid and cross members.



Could be. I didn't blame the skid for my issues, I blamed the fact that I was trying to wrestle with it by myself and get the bolts started. It was a bit ungainly for one person alone.



Most likely, the holes are cut before they bend the sides. Once they bend and weld the sides into place, you could get a small amount of bowing or bending in the panel and each panel could be slightly different. In other words, if I took the skid off, turned it upside down and stood/ bounced on it a little, it may have flattened it a bit which would have the widened the space between the bolts just enough. Or maybe not. I don't want to test my theory bad enough to pull it off and try it.



For all the people talking about skid plates not lining up... you know what they say: cross threads are better than no threads!



Well, I finally replaced the halogen light bulbs in my fog lights and my headlights to LED and I am so happy I did. Not sure what took me so long and the cost was minimal. (Links to all bulbs at the end of the post)

Replaced the fog lamps with SEALIGHT H11/H8/H16 LED Fog Light Bulbs, 6000K Xenon White, 27 SMD Chips, 360-degree Illumination, Non-polarity, bulbs from Amazon and replaced the headlamps with AUTOONE H11 LED Headlight Bulbs, H8/H9/H16 LED Lights Plug and Play 6000K White Fanless Mini Size Car Light Bulbs, also from Amazon. The best $40 I have spent lately on my 2016 4Runner. I didn't stop there.....I should be receiving the LED replacement bulb for the high beam/DRL tomorrow. These were a bit more expensive as the set was approximately $40. I went with AUTOONE 9005 LED Bulbs, 20000LM Super Bright 9005 Bulb for High Beam, 6000K White 9005 Automotive Light Bulb, Wireless Plug and Play Canbus Ready Mini Size HB3 LED Bulbs from amazon.

So far I have been very pleased with the brightness, color (bright white), the improvement to the way the 4Runner looks at night! A few years ago I installed a 20" Nilight light bar on my Westin bullbar and that is so bright I only use it on backroads. The only other external LED upgrade was adding two 4" LED Nilight square pods onto my trailer hitch extension (positioned at at 45 degree angle) and wired them so that they illuminate when in reverse. WOW!!!!! Amazing the difference.

Well, that's it for now.....take care my T4 friends!

Robert

1) Link to LED Foglight bulbs - https://www.amazon.com/dp/B07J579C7Q?ref=ppx_yo2ov_dt_b_product_details&th=1
2) Link to LED Headlight bulbs - https://www.amazon.com/dp/B09TVYTXRT?ref=ppx_yo2ov_dt_b_product_details
3) Link to LED Highbeam bulbs - https://www.amazon.com/dp/B09G9ZPW8V?ref=ppx_yo2ov_dt_b_product_details&th=1



LOl yup...took it to my guy and he told me the guy at the other place was insane. i will need rear shocks at some point in the near future, but nothing that would actually fail me. so now i get to write a lovely detailed email to their corporate hq about my experience.



What is the site? The one I found(https://www.toyota.com/firmware-updates) is only to update the radio firmware and not the Nav/Maps.

Edit: Then there is this one but requires a subscription: https://www.toyota.com/owners/toyota-navigation-system



Got the mounts installed and then mounted basket. Despite having measured a couple times, I didn't like its position and shifted the mounts a couple inches. The worst part of it was getting the nuts and washers started on the U-bolt for the mount. You have to do everything by feel because line-of-sight is blocked from every angle, and the U-bolts don't like to sit straight or still. I did the last three U-bolts in complete darkness.

The 4x4 Innovations mounts are rock solid, as well as small and sleek. The only two nits are that they require an SAE allen wrench (7/32") instead of metric and the U-bolt nuts are 11mm, which isn't a Toyota size. (They should have used 12mm). I'll try to get pics tomorrow if it isn't raining.
