What is this broken connection going to?

Discussion in '2nd Gen 4Runners (1990-1995)' started by 95+94 4runner 4x4, Sep 19, 2020.

  1. Sep 19, 2020 at 9:32 PM
    #1
    95+94 4runner 4x4

    95+94 4runner 4x4 [OP] New Member

    Joined:
    Sep 14, 2020
    Member:
    #16738
    Messages:
    10
    Gender:
    Male
    First Name:
    W
    Vehicle:
    1995 4runner V6 4x4
    none
    Found this connection with one wire pulled out, What is it going to and is it important? bypass?



  2. Sep 20, 2020 at 10:07 AM
    #2
    Fishguy

    Fishguy New Member

    Joined:
    Aug 31, 2020
    Member:
    #16446
    Messages:
    37
    Gender:
    Male
    Vehicle:
    95 4Runner (stock)
    Replaced EGR vacuum modulator!

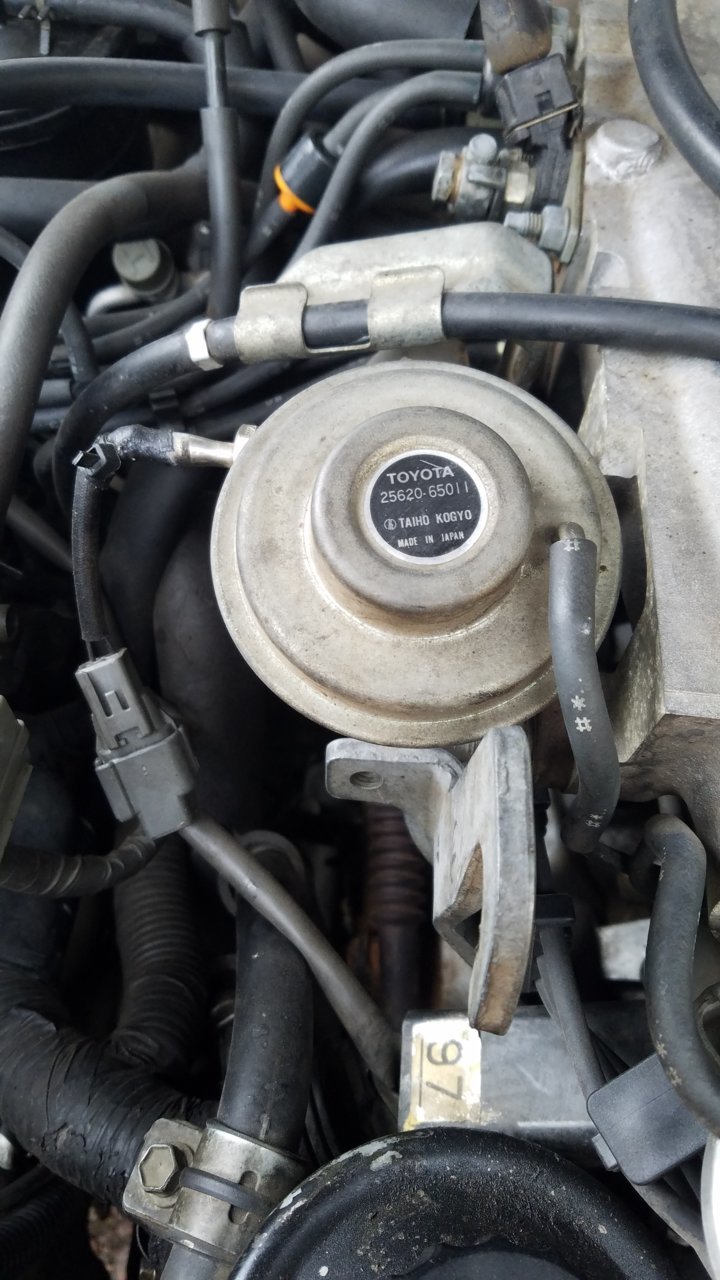

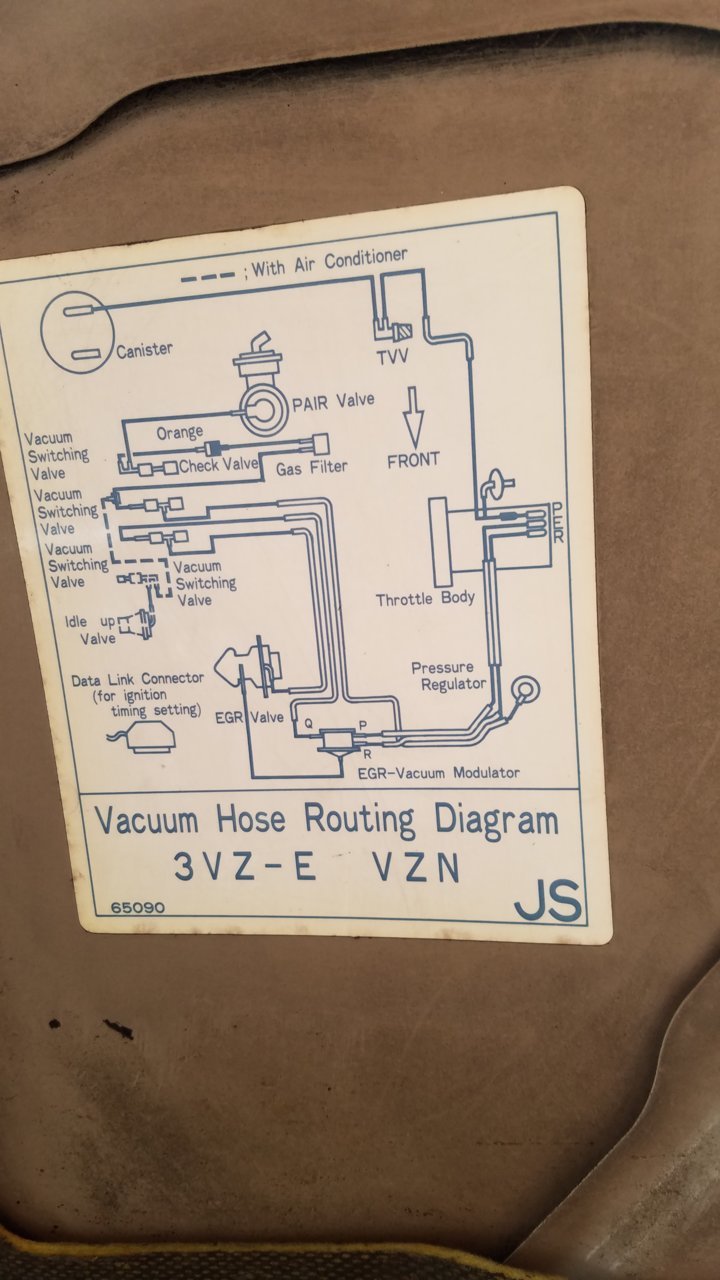

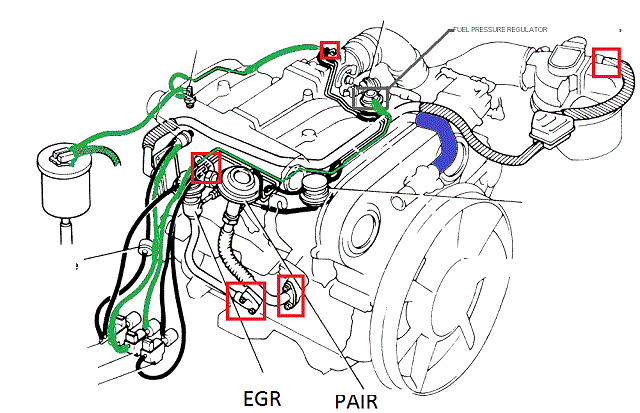

    Oh, the wonderful world of the Gen2 vacuum system. You gotta re-connect that broken (Pix) wire. It takes "signal" from the "PAIR" thingy (Pix2 & 3) and sends it somewhere. I am sure where and don't really care. However, I will tell you, after tracing all my '95 4runner's hoses and replacing the Vacuum Modulator, everything has got to be connected and not leaking for proper performance.


    Pix1.jpg Pix2.jpg Pix3.gif


    Attached Files:

    • Pix1.jpg
      File size:
      152.2 KB
      Views:
      253
    • Pix2.jpg
      File size:
      124.5 KB
      Views:
      293
    • Pix3.gif
      File size:
      37.1 KB
      Views:
      234
  3. Sep 29, 2020 at 7:21 PM
    #3
    Dezman92

    Dezman92 New Member

    Joined:
    Mar 13, 2019
    Member:
    #9168
    Messages:
    96
    Gender:
    Male
    First Name:
    Doug
    Norcal
    Vehicle:
    1994 Green 4runner
    That’s the egr temperature sensor. It’s only on CA models. It will trigger a code 71 for egr performance. You should repair it, I would cut off the connector from the harness of a junker and leave a few inches of wire so you can solder it into your rigs harness. You can bypass the sensor by wiring in a 10k ohm resistor, that will turn off the CEL. It will make you fail the visual on an emissions inspection if you bypass that sensor though.

    atgparker and Thatbassguy like this.
