Rear Coil Spring Rate

Discussion in 'Suspension' started by BluffCountry, Jan 15, 2025.

  1. Jan 15, 2025 at 8:01 AM
    #1
    BluffCountry

    BluffCountry [OP] New Member

    Joined:
    Dec 8, 2023
    Member:
    #37151
    Messages:
    5
    Gender:
    Male
    First Name:
    Dale
    Vehicle:
    2022 TRD ORP
    I’m looking for input on rear spring rate or air bags? I pull boat often tongue weight is around 250 pounds and load vehicle down for hunting trips across the country. I do not like the rear end drop and want to correct it. I have had the 4Runner for a little over a year now and the stock suspension needs to go and want to do it all at once. Do I add heavier springs or the bags. I would prefer a firm ride on the highway vs the rolling wondering suspension the stock shocks and springs provide. The bags would give more control over the ride but I’m not sure that’s the right way to go?

  2. Jan 15, 2025 at 9:29 AM
    #2
    hossler1788

    hossler1788 Turtle

    Joined:
    Dec 17, 2020
    Member:
    #18578
    Messages:
    2,268
    Gender:
    Male
    First Name:
    Joshua
    Central Pa
    Vehicle:
    2020 4runner
    Dobinson has plenty of different springs with different spring rates.

    Stock rear spring rate is 180lbs I believe.
    Eibach 1" lift spring rate is 205lbs.

  3. Jan 15, 2025 at 12:46 PM
    #3
    1SilverRunner

    1SilverRunner My boy, blue

    Joined:
    Jan 15, 2024
    Member:
    #37925
    Messages:
    1,808
    Gender:
    Male
    Tejas
    Vehicle:
    22 TRD Off Road Premium
    Front Bumper: C4 Fabrication Low-Profile Bumper Warn Evo10-S Winch w/ Warn wireless adapter Extreme LED dual color light bar w/ Cali raised LED OEM style switch Bumper Cover Trimmed For Clearance Rear Bumper: 80% Off Road Rear Bash Bar (Limited rear bumper version) Armor: RCI Skid plate package C4 Gas tank skid (modified) RCI Rear diff skid RCI Shock Skids RSG Angled/ Plated Sliders Total Chaos Cam Tab Gussets Total Chaos Spindle Gussets 41.22 Hitch Slider Suspension: Dobinsons IMS long travel shocks: (Front: IMS59-50574 w/ Apache CF220 Springs) (Rear: IMS59-50575 w/ C59-677v Springs) Apex Chassis Tie Rod Assemblies (KIT410) Apache Off Road UCAs Apache Off Road HD Rear Links (Upper and Lower) Apache Off Road Rear Sway Bar Links Dobinsons Track Bar Front Sway Bar Deleted DuroBumps Rear Bump stops PerryParts Front Bump stops DRKDSS Track Bar Correction kit Dobinsons Diff Drop Wheels/ Tires: RRW 17x8.5 -12 RR6-H Wheels 285/75/17 Falken A/T4W 1.25" SpiderTrax Spacers BMC, Pinch Weld Folded. C4 High Clearance Fender Liners Performance: OTT Tuned Scan Gauge II for Temp Monitoring Yota Shop Diff Breather Storage Solutions: Sherpa Crestone Sport roof rack Aiden James Customs Gear Plate w/ Slide Out Tables Rado Designs Molle storage panels and top shelf Glove Box organizer Center Console organizer Interior: Diode Dynamics LED Interior lighting (Warm white ftw) Meso Customs Hatch lights Meso Customs Door Handle Covers Ram ball mount for Garmin In-Touch Mini II FitCamX Dash Camera Scosche phone mount Weathertech floor matts Misc: Nano Ceramic Tint (Including windshield and sunroof) Midland MXT575 and Ghost Antenna Cali Raised LED 27W Ditch Lights w/ oem style switch OVS Nomadic 6.5' Awning AVS Low Profile Vent Visors AVS Bugflector II Diode Dynamics puddle lights Lasfit LED Reverse lights LED license plate lights Ark Splash Guards Ark Mud Flap Deletes (cut for rear bumper/ bash bar) AJT Push-To-Start Button +Midland handheld GMRS radios, Baofeng UV-5R Ham radio, recovery gear, water purification system, lifeboat food rations, trauma kit, fire extinguisher and fire starting kit stay on board.
  4. Jan 15, 2025 at 1:39 PM
    #4
    Photon_Chaser

    Photon_Chaser 53,001 and counting…

    Joined:
    Sep 4, 2023
    Member:
    #35473
    Messages:
    1,660
    Gender:
    Male
    Up, down and all around!
    Vehicle:
    21 TRD Pro - "Photon"

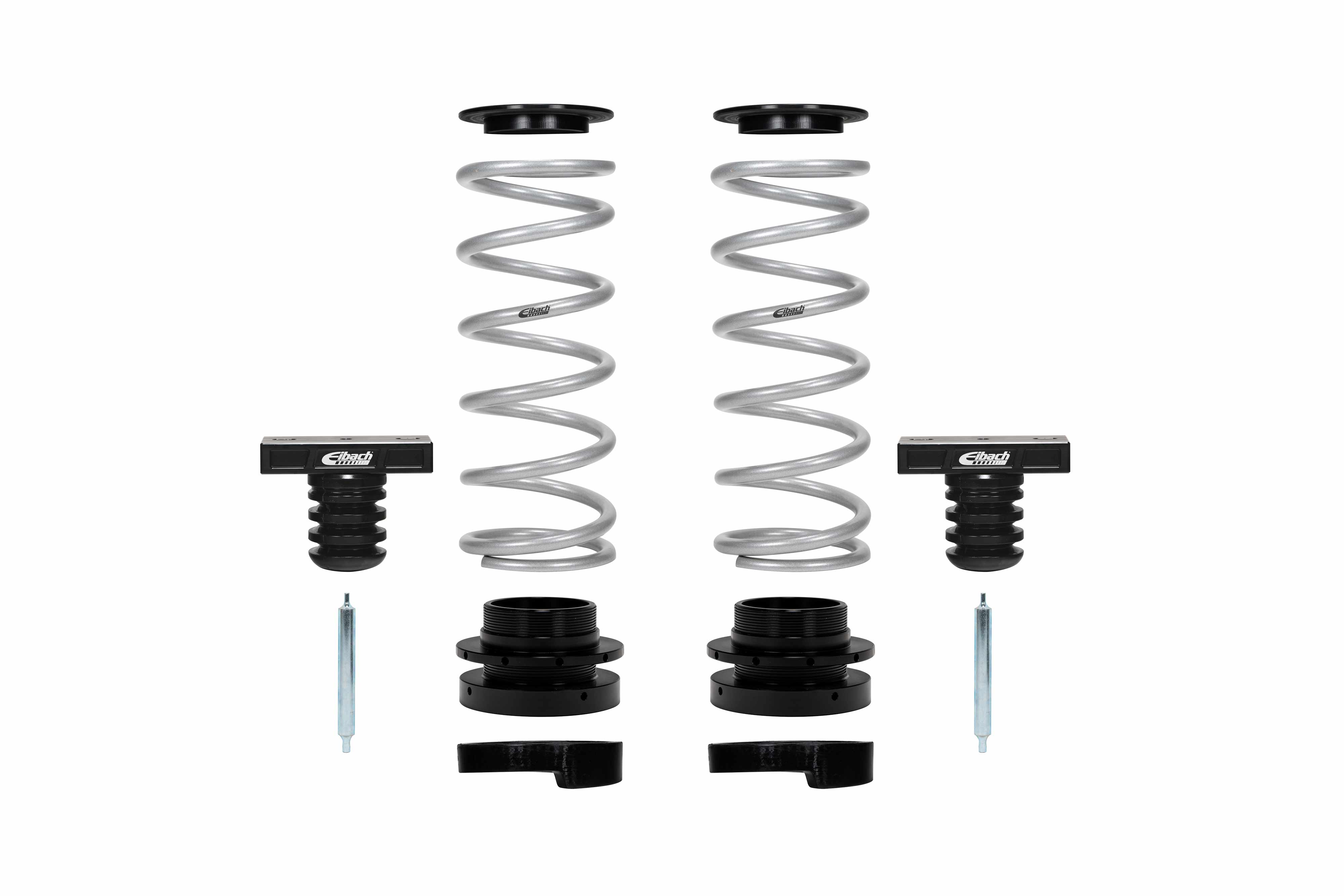

    If it's just the rear suspension that you want to replace/upgrade you might consider the Eibach Load Leveling System. Comes in three load ranges; 0-200 lbs. / 200-400 lbs. / 400+ lbs and are adjustable up to 2".

    [​IMG]

  5. Jan 15, 2025 at 6:42 PM
    #5
    BluffCountry

    BluffCountry [OP] New Member

    Joined:
    Dec 8, 2023
    Member:
    #37151
    Messages:
    5
    Gender:
    Male
    First Name:
    Dale
    Vehicle:
    2022 TRD ORP
    Thanks for the advice. I think a 200 lb rear spring new shocks all the way around and if I still get a sag on my heavy trips I can add the airbags.
