Diffs and transfer case drain/fill bolt torque values?

Discussion in '5th Gen 4Runner Parts Marketplace (2010-2024)' started by rmiked, Jun 2, 2023.

  1. Jun 2, 2023 at 11:27 AM
    #1
    rmiked

    #1
    rmiked [OP] New Member

    Joined:
    Feb 9, 2023
    Member:
    #31156
    Messages:
    513
    Gender:
    Male
    First Name:
    Mike
    Fort Mill, SC
    Vehicle:
    2023 ORP, Lunar Rock , Moonroof, rear sliding cargo deck, cargo mat

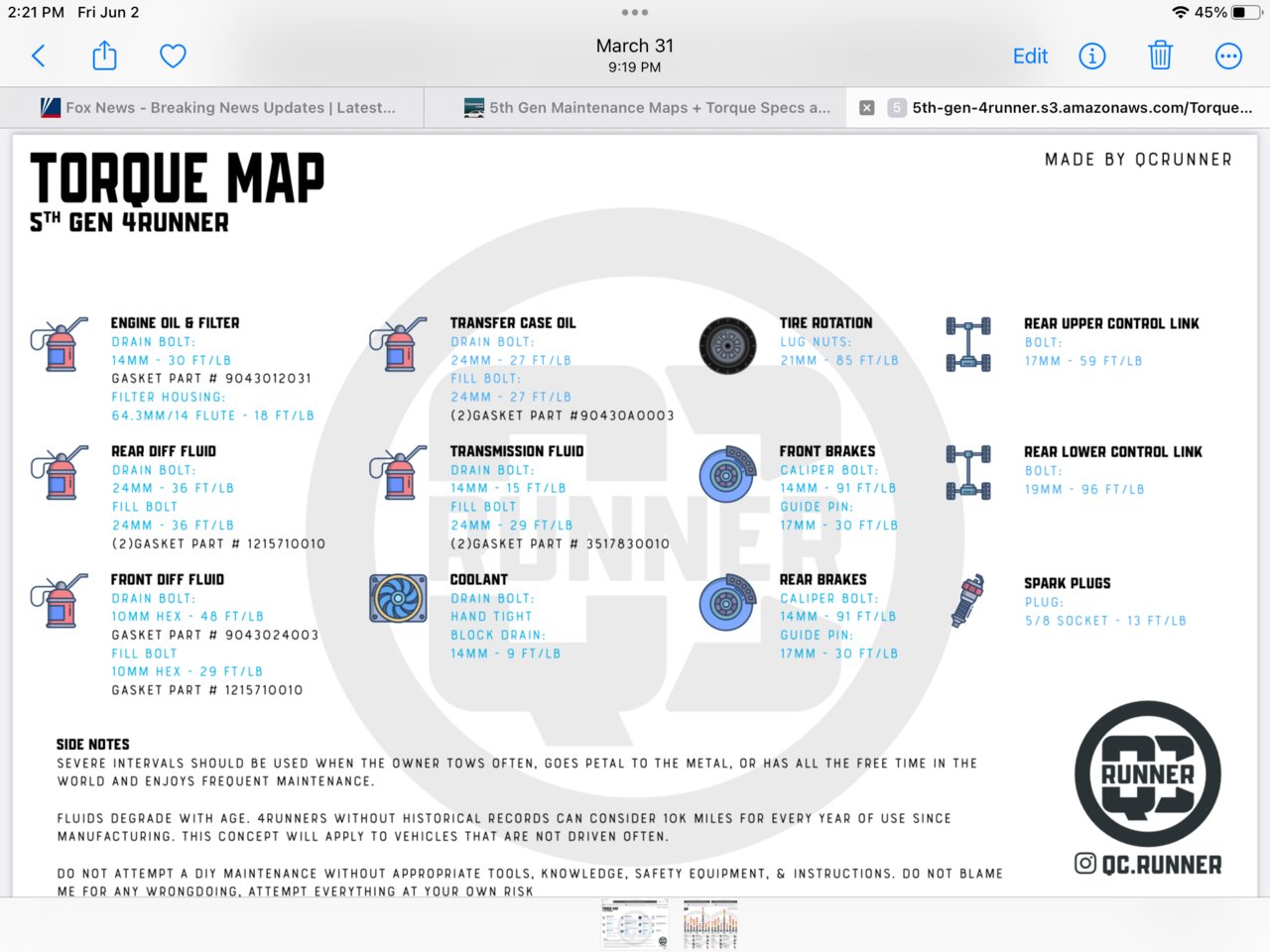

    I have the “torque map” available on this forum. I see the owner’s Manual doesn’t specify and torque values on these 3 items. I assume these values come from a 4 Runner repair manual? Looks like the transfer case is some alloy (aluminum, magnesium) and have lower values. The front and rear diffs look to be steel. I would imagine the fill bolts are less likely to leak than drain bolts. Anyone had any problems using these values? The bolt size for front diff (10mm)
    is listed much smaller than the other 2 (rear diff and transfer case) at 24 mm.


    Attached Files:

    rmiked, Jun 2, 2023
    #1
    ChessGuy likes this.
